Description
75 Ohm PE Series
Standard Construction :

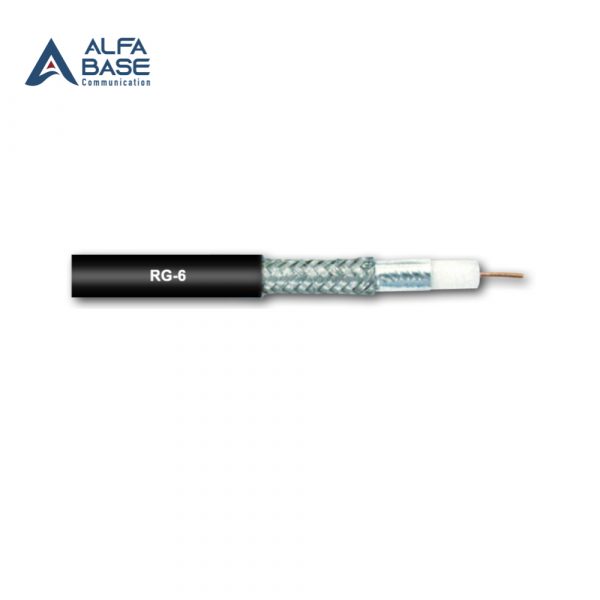

14 AWG [1.63 mm (0.064 in.)] copper covered steel center conductor, gas expanded polyethylene dielectric, inner shield aluminum-polypropylene-aluminum laminated tape with overlap bonded to dielectric, outer shield of 34 AWG (0.16 mm) bare aluminum braid wire, jacket of black PVC (LSZH optional). Nominal outside diameter is 10.03 mm. (0.395 in.). Messenger Breaking Strength (Min) is 166 kgf.
Physical Dimensions :
| Component | Standard | Shield | Tri-Shield | Quad-Shield | ||
|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | |
| Nominal Center Conductor Diameter | 1.63 | 0.064 | 1.63 | 0.064 | 1.63 | 0.064 |
| Nominal Diameter Over Dielectric | 7.11 | 0.280 | 7.11 | 0.280 | 7.11 | 0.280 |
| Nominal Diameter Over First Shield (Tape) | 7.29 | 0.287 | 7.29 | 0.287 | 7.29 | 0.287 |
| Nominal Diameter Over Jacket | 10.03 | 0.395 | 10.03 | 0.395 | 10.29 | 0.405 |
| Nominal Jacket Wall Thickness | 1.07 | 0.042 | 0.99 | 0.039 | 0.94 | 0.037 |
| Nominal Diameter of Steel Messenger | 1.83 | 0.072 | 1.83 | 0.072 | 1.83 | 0.072 |
