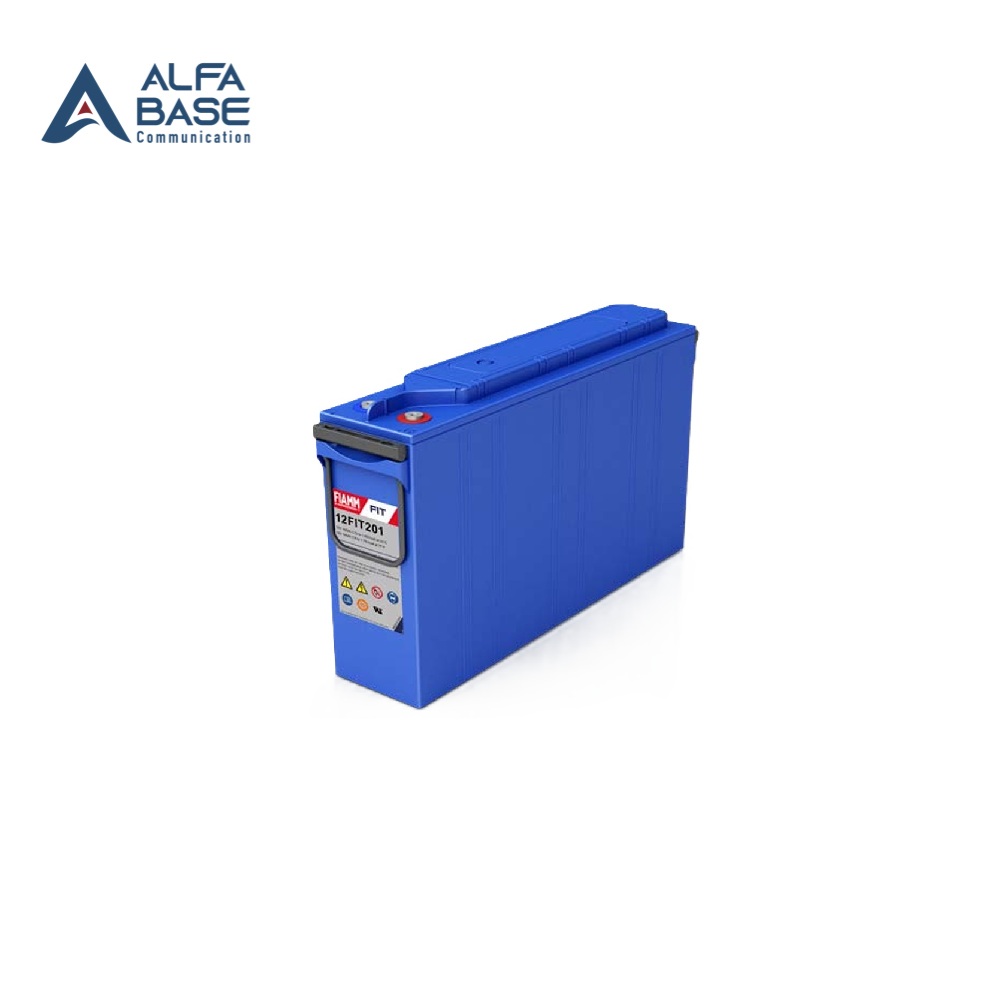

The FIT AGM VRLA range is designed for the highest reliability and safety fields. These are constructed with an easys-access front-terminal design and are particularly suited to telecom backup application in 19″ and 23″ cabinets. The construction of the FIT range is aimed to minimise the footprint thanks to good energy density and allows easy access during the routine visual inspections. Internally high-quality fiber-glass separators are used to control recombination currents and avoid thermal runaway. The exterior construction uses a flame retardant ABS plastic to UL94 V0 (LOI greater than 28%) – this guarantees a high level of safety and superior thermal stability to avoid case bulging. The design has been optimized to lower self-discharge during storage.
Standards :
IEC 60896 Part 21 – VRLA methods of testing
IEC 60896 Part 22 – VRLA requirements
BS6334 / UL 94 V0 materials flammability
Eurobat “>12 years VERY LONG LIFE”
UL Recognized
| Product Information | ||||||
|---|---|---|---|---|---|---|
| Battery Type | Nominal voltage (V) | Nominal capacity (Ah) | Nominal dimension (mm) | Typical weight (kg) | ||
| 10H 1.80VPC 20°C | Length | Width | Height | |||
| 12FIT40 | 12 | 40 | 105 | 280 | 198 | 13 |
| 12FIT60 | 12 | 60 | 105 | 280 | 260 | 18 |
| 12FIT101 | 12 | 101 | 108 | 395 | 275 | 33 |
| 12FIT100/23 | 12 | 100 | 126 | 558 | 230 | 39 |
| 12FIT131 | 12 | 130 | 126 | 558 | 282 | 46 |
| 12FIT150 | 12 | 150 | 126 | 558 | 282 | 49 |
| 12FIT151 | 12 | 150 | 110 | 531 | 316 | 49 |
| 12FIT180 | 12 | 180 | 126 | 558 | 321 | 57 |
| 12FIT201 | 12 | 195 | 126 | 558 | 321 | 61 |
