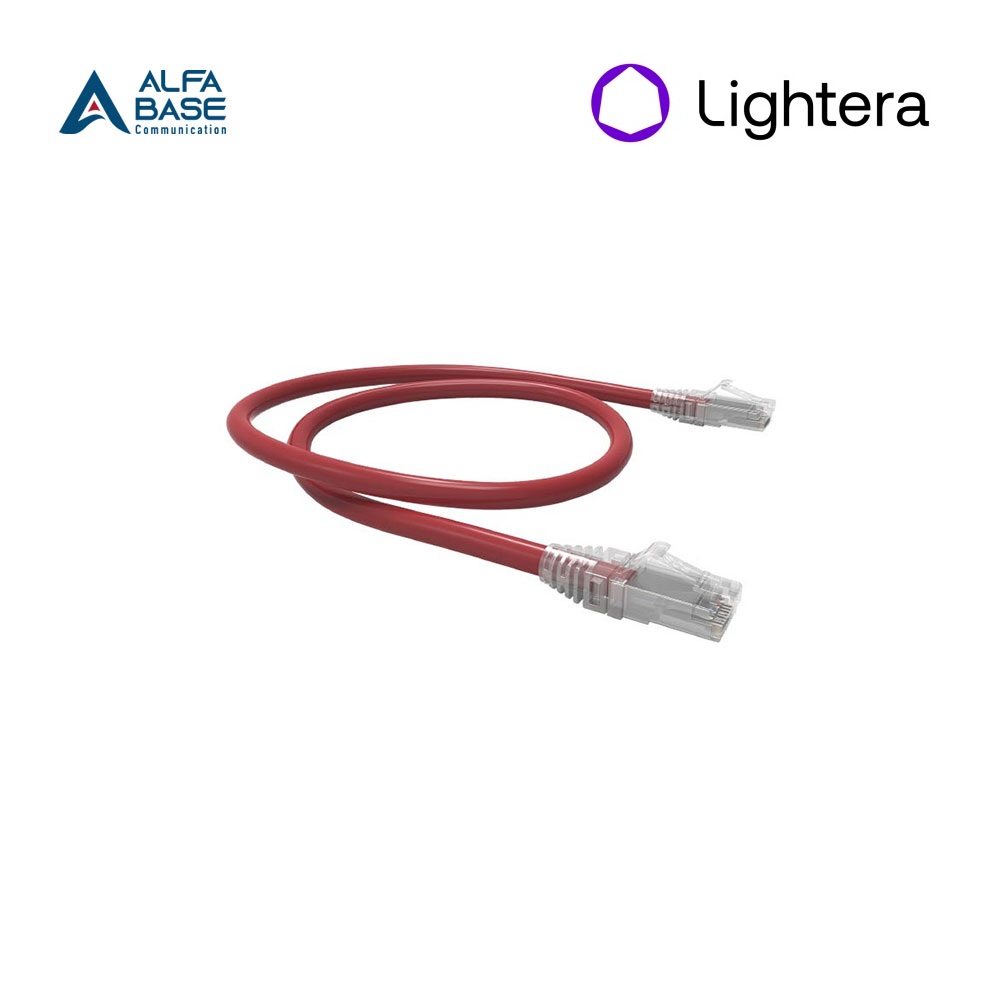

U/UTP Gigalan CAT6 Patch Cord

Applications

  • Support IEEE 802.3, 1000 BASE T, 1000 BASE TX
  • IEA/TIA-854
  • ANSI/TIA-862, ATM, Video
  • Building Automation System and all previous LAN Protocols

Advantage

  • Exceeds the limits established in the standards for CAT6/Classe E
  • Guaranteed channel performance up to 4 connections up to 100 meters channel
  • Injected thermoplastic protective covers (“boot”) to prevent “fatigue in the cable” in the connection and moves and to prevent accidental disconnection. This protective layer has the same dimensional of a RJ45 plug and its structure prevents pinching on the plug lock
  • RJ-45 with dual claws that provide the link with the veins of electrical cable
  • Guarantee ZERO BIT ERROR in Fast and Gigabit Ethernet
  • 100% assembled and tested at the factory

PoE

  • 802.3af and 802.3at

Length

  • From 0.5 up to 20 meters

Color

  • Yellow, Blue, White, Red, Gray, Green, Black, Brown*, Orange* and Purple*

*Colors available upon request. The minimum order quantity must be equivalent to 3000 meters for this color

Connector Type

  • RJ-45 on both sides

Cable Type

  • U/UTP CAT6

Standard

  • ANSI/TIA-568.2-D
  • ISO/IEC 11801
  • EN 50173-1
  • IEC 60603-7
  • FCC part 68
  • NBR 14565
  • NMX-I-248-NYCE-2008
  • ANSI/TIA-606-C

Certifications

  • ETL 4 Connector Channel
  • ETL Verified
  • UL Listed E173971 (CM)

RoHS

  • This product is in accordance with the RoHS European Directive: a directive on the restriction of the use of certain hazardous substances and related to the environmental preservation
Part Numbers Product
35123602 U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 1.5M – BLUE
35123605  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 3.0M – BLUE
35123802  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 1.5M – YELLOW
35123805  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 3.0M – YELLOW
35123302  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 1.5M – RED
35123305  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 3.0M – RED
35123902  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 1.5M – GRAY
35123905  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 3.0M – GRAY
35123402  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 1.5M – GREEN
35123405  U/UTP GIGALAN CAT6 PATCH CORD-CM-T568A/B – 3.0M – GREEN
Price Request
Compare
Categories: , , ,
Description

Description

Installation Environment : Indoor

Operation Environment : Non aggressive

Compatibility : All FCS products

Tracking : Label with serial number on one end

Weight (kg) : 0.034 kg/m

Nominal Diameter : 5.5 mm

Conductor Type : Electrolytic copper, flexible, bare, formed by 7 filaments of nominal diameter of 0.20 mm. Jacket made from Polyethylene and can support bandwidth 250 MHz

Cable Flammability Rating : CM, CMR or LSZH

Number of Pairs : 4 pairs, 24AWG

Electrical Contact Material : 8-way phosphor bronze with 100μin (2.54 μm) of nikel and 50μin (1.27 μm) of gold

Main Product Material Plug : Transparent thermoplastic material UL 94V-0

Assembly Standard : T568A/B or Cross-over

Operation Temperature (ºC) : -10ºC to +60ºC

Storage Temperature (ºC) : -40ºC to +70ºC

Mated : ≥ 750 RJ-45

Retention Force (N) : 50N

Maximum CC Resistance : 93.8 Ω/km

Maximum Mutual Capacitance @ 1kHz : 56 pF/m

Characteristic Impedance : 100±15%Ω

Dielectric Strength : 2500 VDC/3s

NVP (%) : 66 %

Maximum Delay Skew : 45 ns/100m

Package Type : Transparent plastic bag with identification label

Warranty : 12 months
