P/N Definition:

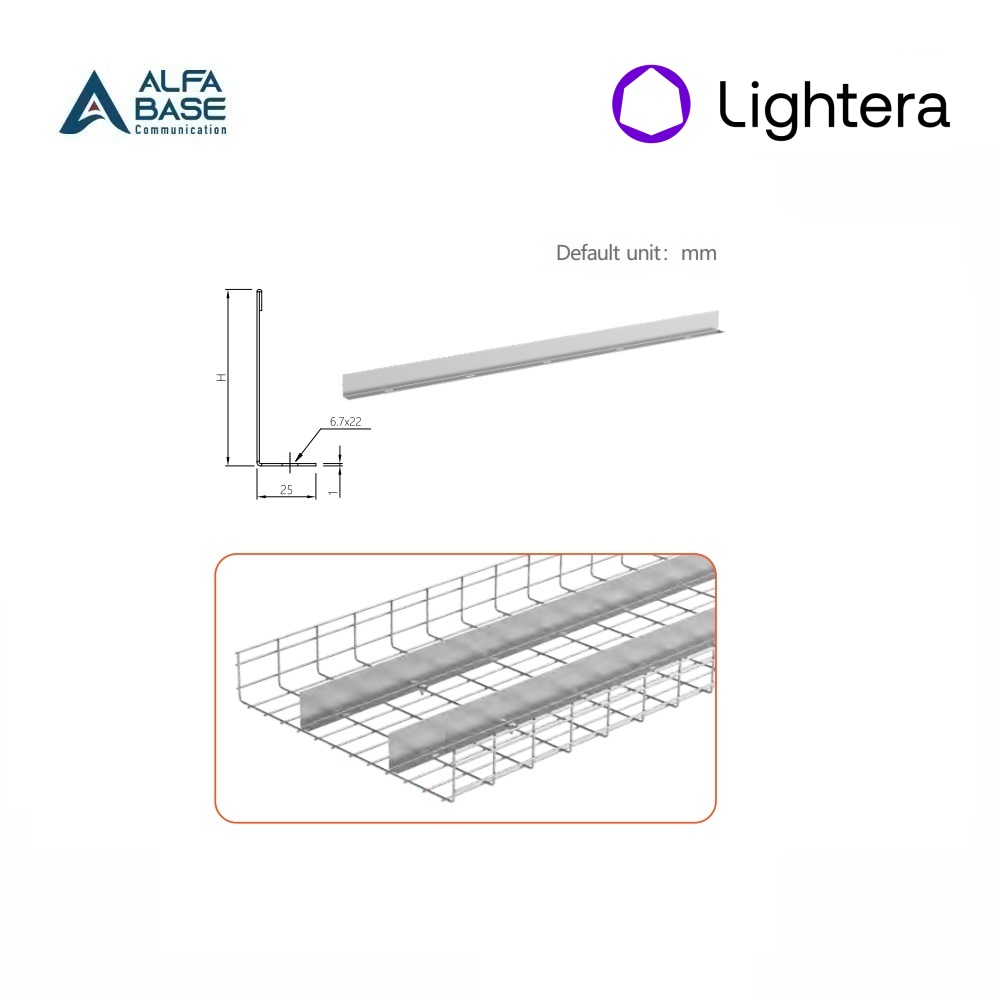

  • e.g. PJ-DVR50-1000, PJ means accessories of wire mesh cable
    tray; DVR means divider; 50 means it fits for 50mm high wire
    mesh cable tray; 1000 means 1000mm long per piece

Instruction manuals:

  • Suitable for: Isolating strong and weak electricity, often used in
    data center
  • Fit for: Wire diameter from 3.5mm to 6.0mm, covering all sizes
    of cable trays
  • Include:cover×1、cover clamp×1、M6×20 Carriage Bolt×3
Part Numbers Height Width Length Weight
ALL PJ-DVR50-1000 47.5 25.5 1m 0.60kg
ALL PJ-DVR100-1000 75.0 25.5 1m 0.81kg
ALL PJ-DVR150-1000 125.0 25.5 1m 1.27kg
ALL PJ-DVR50-3000 47.5 25.5 3m 1.80kg
ALL PJ-DVR100-3000 75.0 25.5 3m 2.43kg
ALL PJ-DVR150-3000 125.0 25.5 3m 3.81kg
