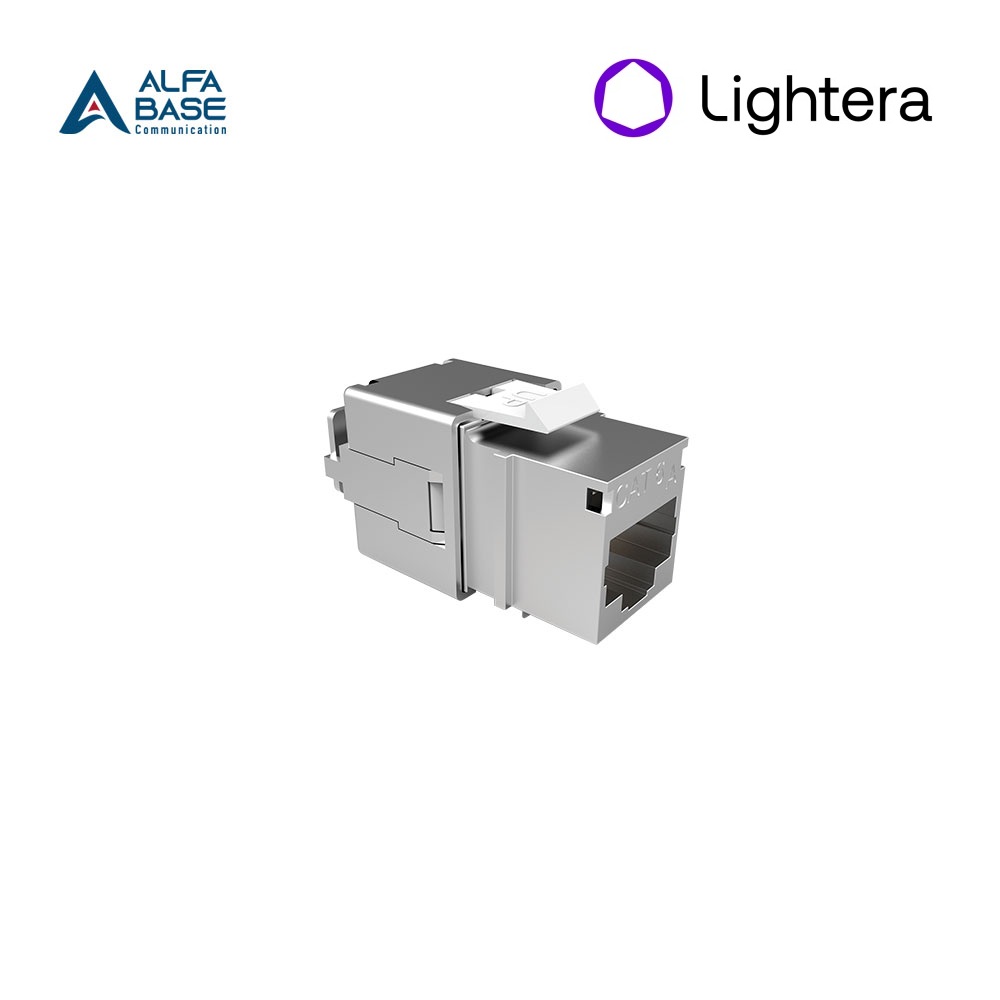

Shielded Modular Jack Gigalan Augmented CAT6A

Applications
Installation Environment Indoor
Operation Environment Non Aggressive
Compatibility Shielded modular patch panel and Fisacesso faceplates Warranty 12 months
Extended Warranty 15 or 25 years – in accordance to the FCS Extended Warranty Program
Advantage
Exceeds the limits established standard for CAT6A
Performance guaranteed channel for up to 4 connections in channels up to 100 meters
Support IEEE 802.3an, 10G BASE-T, 1000 BASE T, 1000 BASE TX, EIA / TIA-854
ANSI-EIA / TIA-862, ATM, Video, Building Automation Systems, 10G BASE-T
(TSB-155 ) all previous LAN protocols and POE IEEE802.3af e IEEE802.3at
Cable insertion angle of 180 ° and 90 ° with the same product
Accessory for IDC contact protection and maintenance of crimped cable
Chance of T568A or T568B Crimping
Supports colored icons in the connector body
Supports Dust cap (Dust Cover), removable and articulated, with place for insertion ID icon on the cap.
It comes with protective dust cover
Earth connection system built into the product, without the need for
additional accessories directly grounded in the patch panel
Connector compatible with crimping tool Premium
Compatible with previous categories (Category 6, Category 5E, category 5)
Allows patch cord insertion 6 and 08 positions without deteriorating
Identification Category printed on front, Furukawa’s sign on body of connector
Trace Lot of production printed on product’s structure
