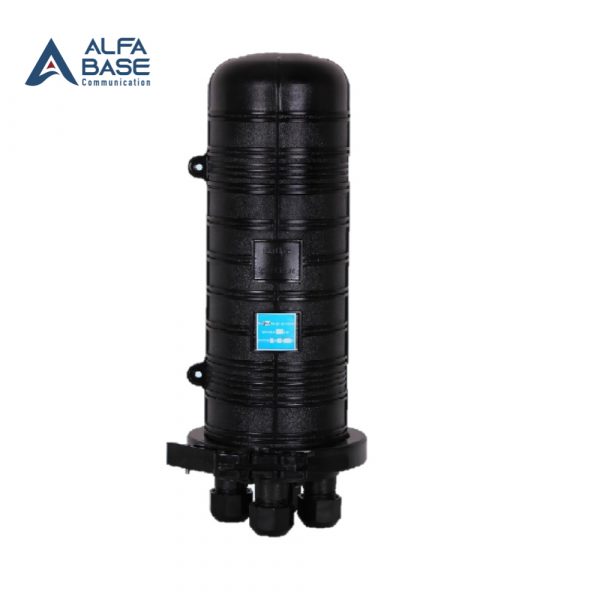

CL-8014 : Fiber optic Closure In-Line, Vertical (Dome)
Next product

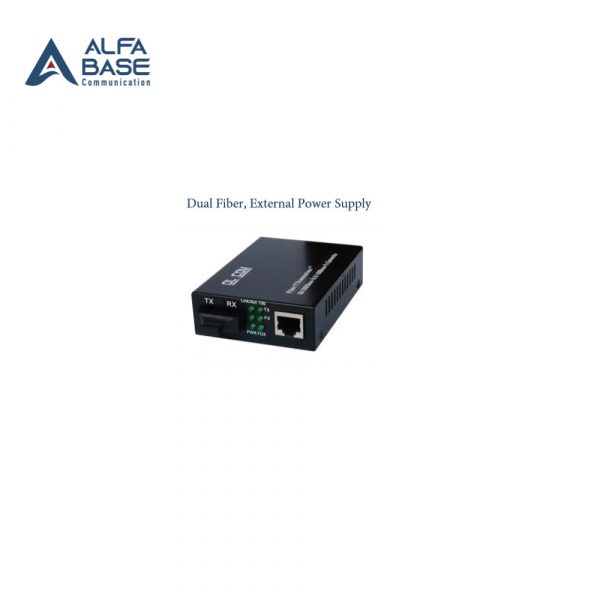

ตัวแปลงสัญญาณที่ส่งผ่านสาย LAN UTP Media Converter Dual Fiber, External Power Supply
Click to enlarge

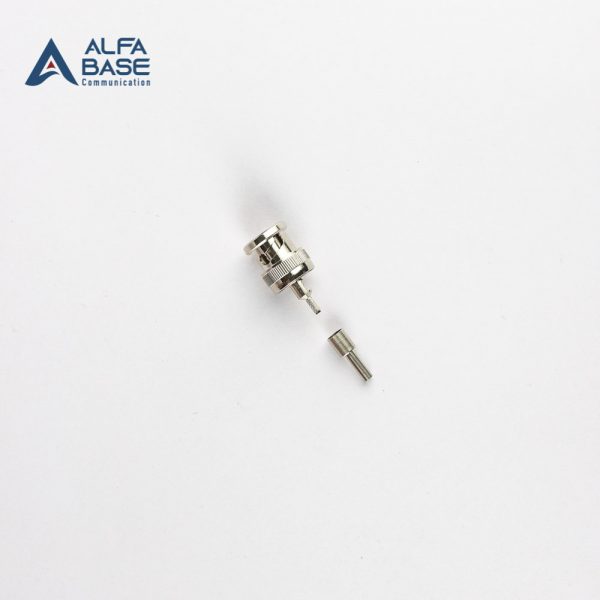

Connector BNC Male Crimp Type

หัวต่อ Connector แบบ BNC ตัวผู้ชนิด Crimp Type สามารถใช้กับสายโคแอกเชียลชนิด RG179, 2.5C-2V, 3C-2V, RG58, RG59 และสายโคแอกเชียลขนาดต่าง ๆ ได้

Series BNC are boyonet – coupling popular coaxial connectors. Which have the excellent performances of rapid connect/disconnect, high reliability, are used to connect RF coaxial cables in electrical and electronic equipment and instruments. Connector BNC Male Crimp Type can use for Cable Type RG179, 2.5C-2V, 3C-2V, RG58, RG59 and any size of coaxial cable.



Price Request
Compare
Categories: , Tags: ,
Description

Description

Impedance50 Ohms75 Ohms
Frequency Range0 - 4 GHz0 - 2 GHz
Voltage Rating500 VRMS500 VRMS
Dielectric withstanding voltage1500 Volts1500 Volts
VSWR1.3 max. 0 - 4 GHz1.3 max. 0 - 2 GHz
Contact ResistanceCenter Contact :
3 milliohms ;
Outer Contact :
2 milliohms ;		Center Contact :
3 milliohms ;
Outer Contact :
2 milliohms ;

MATERIAL

FINISH
Center ContactBrassGold*
Metal PartsBrassNickel*
InsulatorsDelrin**None
PBT polyester
Clamp GasketsSilicone rubberNone
Synthetic rubber
Crimp FerruleAnnealed CopperNickel*
*Silver plated body or contact is only available for special requirement
**Unless otherwise noted as Teflon
