UTP Patch Panel

แผงกระจายสายแลน (UTP) แบบ Cat6 และ Cat5e สำหรับติดตั้งในตู้ Rack 19″

Overview :

Manage traffic simply and effectively in Ethernet applications with Ethernet patch panels. Each compact panel is equipped with IDC terminated PCB assemblies in either 568A or 568B pinouts. Cat5e and Cat6 patch cords are also available to complete your installations.

P/NDescriptions
AL-4121CAT6 Patch Panel 24 Port 1U with RJ45 Modular Jack "ALFA BASE"
AL-4122CAT6 Patch Panel 48 Port 2U with RJ45 Modular Jack "ALFA BASE"

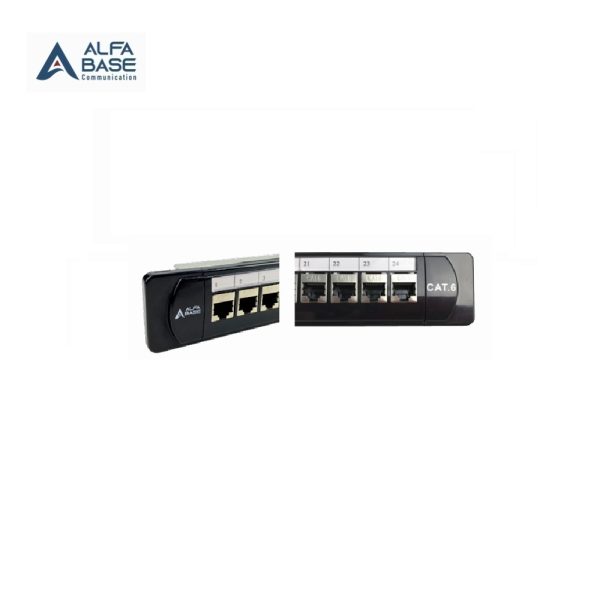

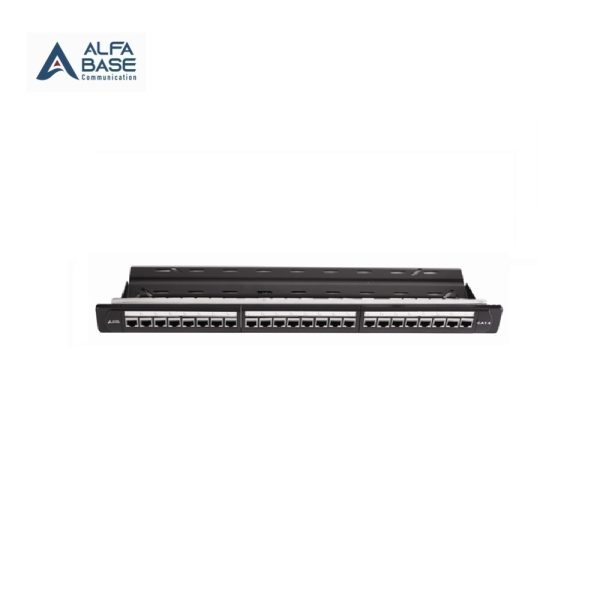

AL-4196SShield Unload Patch Panel 24 Port 1U W/Label, Back Bar Support "ALFA BASE"
AL-4196S-AL-3121SShield Patch Panel 24 Port 1U with Shield CAT6 In-Line Coupler "ALFA BASE"
Description

Description

Applications :

  • 10/100/1000 Ethernet connectivity
  • Data applications
  • Private/enterprise networks
  • T1/DDS TDM connectivity and patching

Cat5e Patch Panel :

  • Exceed Category 5e TIA/EIA-568-B.2 specifications for component performance
  • Handle data rates exceeding 100 MHz

Cat6 Patch Panel :

  • Exceed Category 6 TIA/EIA-568-B.2 specifications for channel and link performance
  • Handle data rates exceeding 250 MHz
  • Angled and paired IDC pins provide a gas-tight connecting and improved cable retention to maximize Cat6 performance

Primary Benefits :

  • Versatility for a variety of applications, including Ethernet 10/100/1000, T1 and DDS patching
  • 24 and 48 position Category 5e and Category 6 panels available, 1RU and 2RU 19-inch rack mounting
  • Rugged steel construction with rolled edges to eliminate flex during termination
  • Integrated rear cable management bar provides cable strain relief
  • Multiple cable tie locations to meet your standard practices and simplify moves, adds, changes and maintenance
  • Clear write-on designation and easy to identify ports

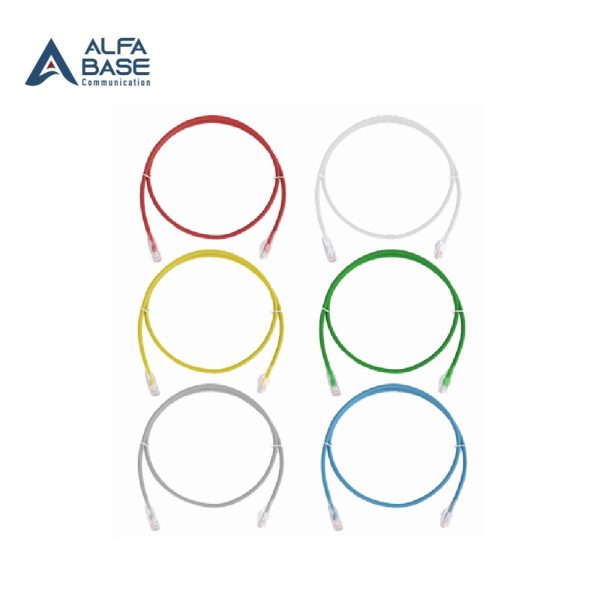

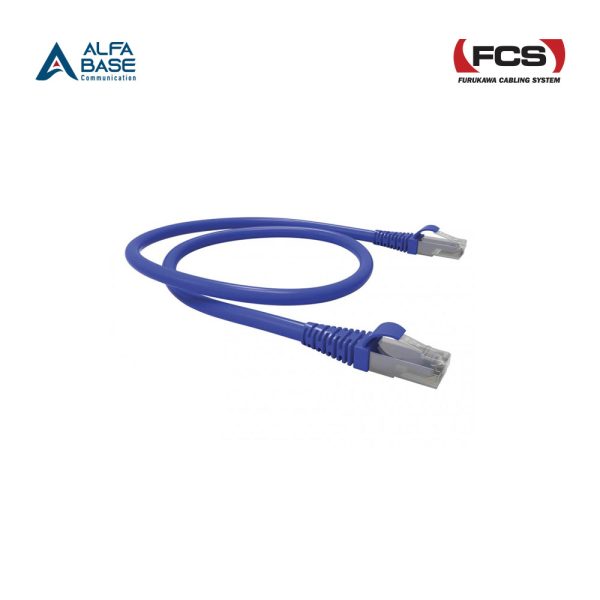

  • Complete line of Cat5e and Cat6 patch cords in various standard lengths and colors also available

Specifications :

  • Wiring : T568A or T568B
  • Insertion life : 750 cycles minimum, <0.2dB
  • Housing : High impact UL94V-0 rated thermoplastic
  • IDC blocks : Tin lead plated connector accepts 22 – 26 AWG solid UTP cable
  • Contact pressure : 100 grams min.
  • Insulation resistance : 500 megaohms
  • Contact resistance : 10 miliohms max
  • Voltage/current : 140 VDC @ 1.5 amps max
  • Dielectric withstand : 1000 VAC RMS @ 60 Hz min
  • Compliance : Part 68, FCC rules, TIA/EIA Category 5e or 6 specifications, UL listed

Patch Panel Dimensions :

  • 24 Port patch panel : 19 in. W x 1.75 in. H x 3.5 in. D (48.26 cm x 4.45 cm x 8.89 cm)
  • 48 Port patch panel : 19 in. W x 3.5 in. H x 3.5 in. D (48.26 cm x 8.89 cm x 8.89 cm)
