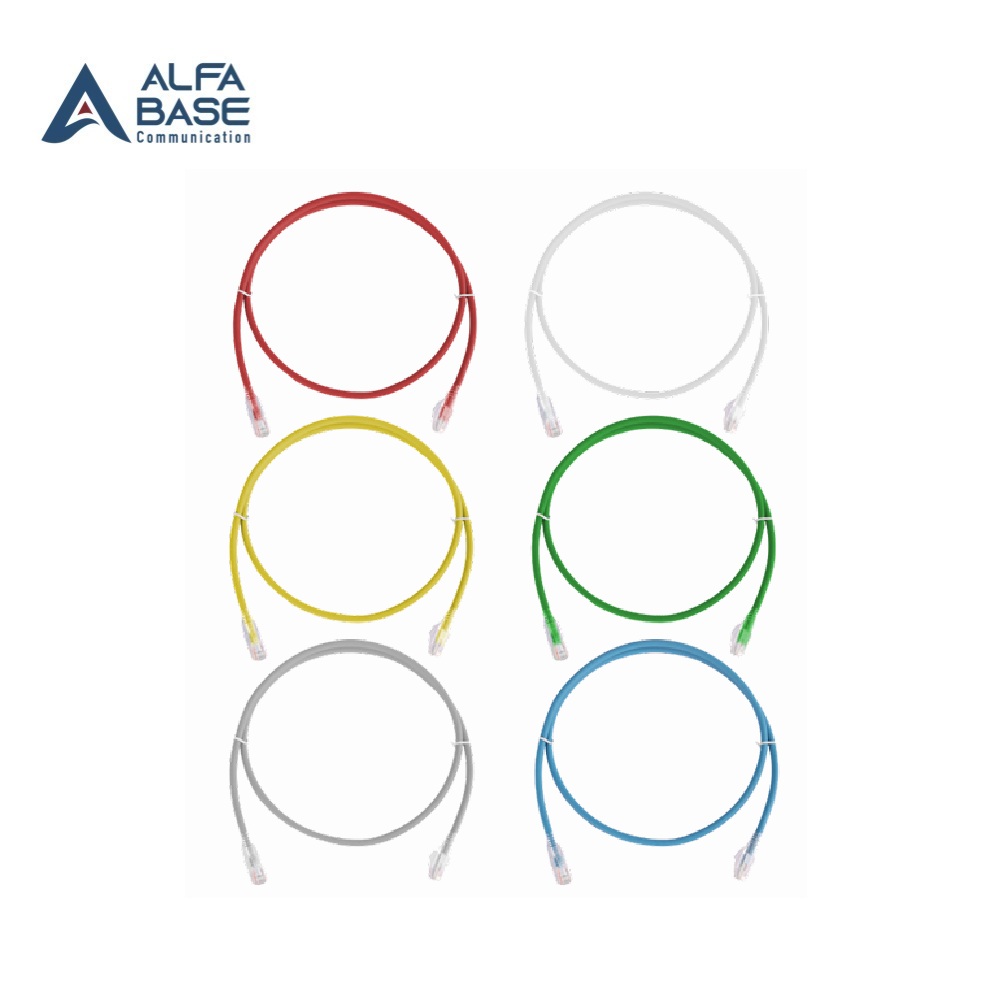

AL-6122 : CAT6 RJ45-RJ45 Patch Cord LSZH

สายแลน UTP Patch Cord แบบ Cat6 สำหรับเชื่อมต่อสัญญาณคอมพิวเตอร์

UTP Patch Cord

Specifications :

  • Cable construction : UTP 4P stranded flexible wire 24AWG pure copper
  • Cable insulation : HDPE
  • Cable outer jacket : LSZH
  • Cable color : Red, white, yellow, green, gray, blue
  • Connector : RJ45 Cat6 modular plug
  • Connector material : 50-micron gold plating over nickel plated and phosphor bronze
  • Boot : Molding from manufacture
  • Testing : 100% factory assembly and testing
  • Certified : RoHS, CE, UL
  • Operating temperature : 60 °C
P/NDescriptions
AL-6122W-1CAT6 RJ45-RJ45 Patch Cord LSZH White 1M "ALFA BASE"
AL-6122B-1CAT6 RJ45-RJ45 Patch Cord LSZH Blue 1M "ALFA BASE"
* Color Code : R(Red), W(White), Y(Yellow), G(Green), GR(Gray), B(Blue), BL(Black)
** Length Code 1 = 1M ......... 40 = 40M



Price Request
Compare
Category: Tags: ,
Description

Description

Applications :

  • 100Base-TX
  • 100Base-T
  • 100VG-AnyLAN
  • 1000Base-T(Gigabit Ethernet)
  • 1000Base-TX 155Mbps ATM
  • 10G Base-T (@ 55M)
  • 622 Mbps ATM
  • Data Center, VoIP, ISDN, PoE, IoT, CCTV

Standards :

  • ANSI/TIA 568-C.2 Cat6
  • ISO/IEC 11801:2017 Class E
  • EN50173-1
  • UL444
