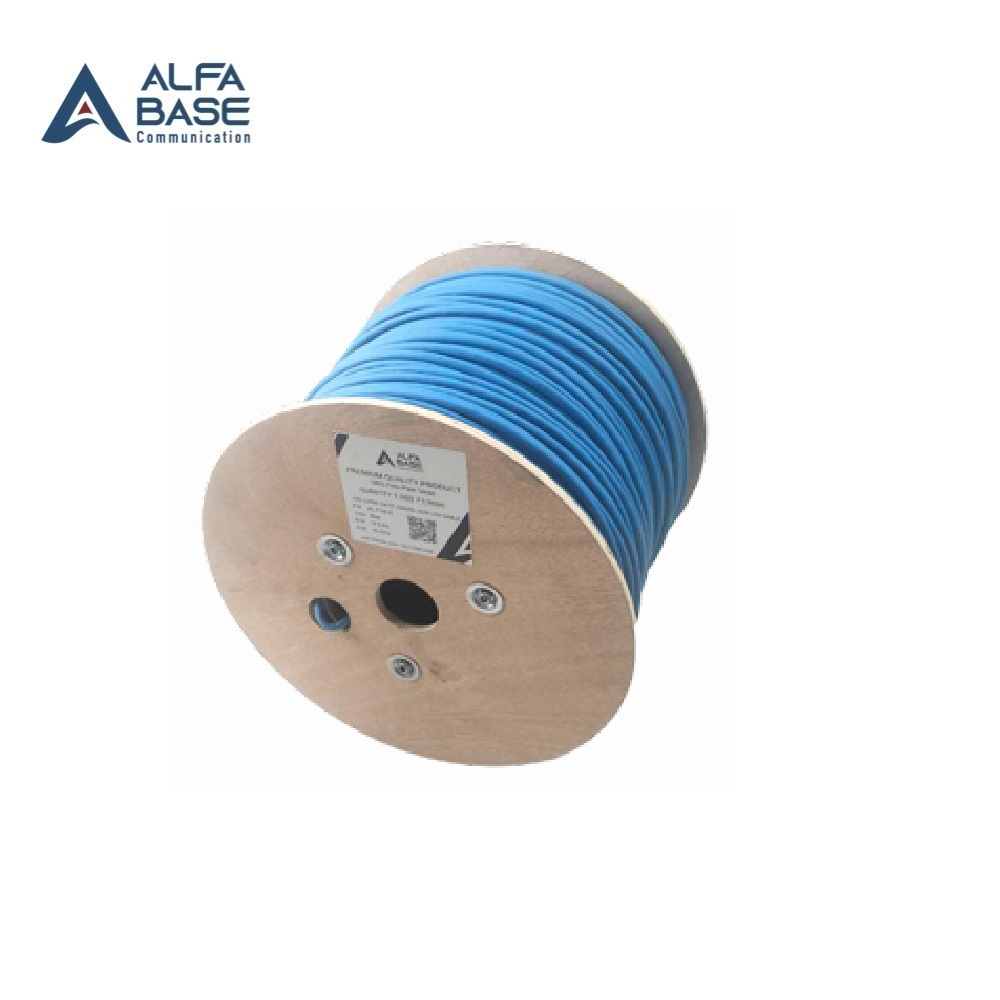

AL-7136 : Shielded S/FTP Cable CAT6A 23AWG LSZH 305M “ALFA BASE”

สายแลน S/FTP แบบ Cat6A สำหรับเชื่อมต่อสัญญาณคอมพิวเตอร์

Shielded S/FTP Cable CAT6A 23AWG LSZH 305M

Structures :

  • Construction : S/FTP
  • Conductor dimension : 23AWG (0.57±0.01mm)
  • Conductor material : Solid copper
  • 1st Shielded : AL-Foil
  • 2nd Shielded : AL-MG braid
  • Shield coverage : ≥40%
  • Drain wire : 0.40 mm Tinned copper

Insulations :

  • Insulation material : FOAM PE&HDPE
  • Insulation dimension : 1.38±0.05 mm

Sheaths :

  • Outer jacket material : LSZH
  • Outer jacket color : as customer request
  • Ripcord : Yes
  • Overall diameter : 7.7±0.3 mm
P/NDescriptions
AL-7136-BKShielded S/FTP Cable CAT6A 23AWG LSZH Black 305M "ALFA BASE"
AL-7136-GRShielded S/FTP Cable CAT6A 23AWG LSZH Gray 305M "ALFA BASE"
AL-7136-BShielded S/FTP Cable CAT6A 23AWG LSZH Blue 305M "ALFA BASE"
Code; BK(Black), AQ(Aqua), W(White), R(Red), Y(Yellow), G(Green), GR(Gray), B(Blue)
Description

Description

Applications :

  • 100Base-TX
  • 100Base-T
  • 1000Base-T(Gigabit Ethernet)
  • 1000Base-TX
  • 10G Base-T
  • 155Mbps ATM
  • 622Mbps ATM
  • Data Center, VoIP, ISDN, PoE, IoT, CCTV

Standards :

  • ANSI/TIA 568.2-D Cat6A
  • ISO/IEC 11801
  • EN50173

Operating temperature : 60 °C

Electrical Characteristics :

  • 1 – 500 MHz impedance 100±5Ω
  • Max. delay skew ≤ 45/100m
  • Max. conductor resistance 93.8Ω/km
  • Max. conductor resistance unbalance 4%
  • Min. insulation resistance 5000MΩ/km
  • Nom. mutual capacitance < 56 nF/km
  • Nominal velocity of propagation 77%

Mechanical Characteristics

  • Outer jacket tensile strength ≥ 10 Mpa
  • Outer jacket elongation ≥ 125%
  • Outer jacket aging condition 100 °C x 168 hrs.
  • After aging, tensile strength ≥ 8 Mpa
  • After aging, elongation ≥ 100%
  • Cold bend no crack (@-20 °C x 4 hrs.)
  • Hot impact no crack (@150 °C x 4 hrs.)

Performance Characteristic :
Frequency (MHz)IL (dB/100m)Next (dB)PS Next (dB)ACR-F (dB)PS ACR-F (dB)RL (dB)
13.065.062.064.261.219.1
43.564.161.852.149.121.0
85.059.457.046.143.121.0
105.557.855.544.241.221.0
167.054.652.240.137.120.0
207.853.150.738.235.219.5
258.851.549.136.233.219.0
31.259.850.047.534.331.318.5
62.514.045.142.728.325.316.0
10018.041.839.324.221.214.0
20026.136.934.318.215.211.0
25029.535.332.716.213.210.0
35035.631.829.113.310.38.6
50043.826.723.810.27.28.0
