CM100 Series
P/N Definition

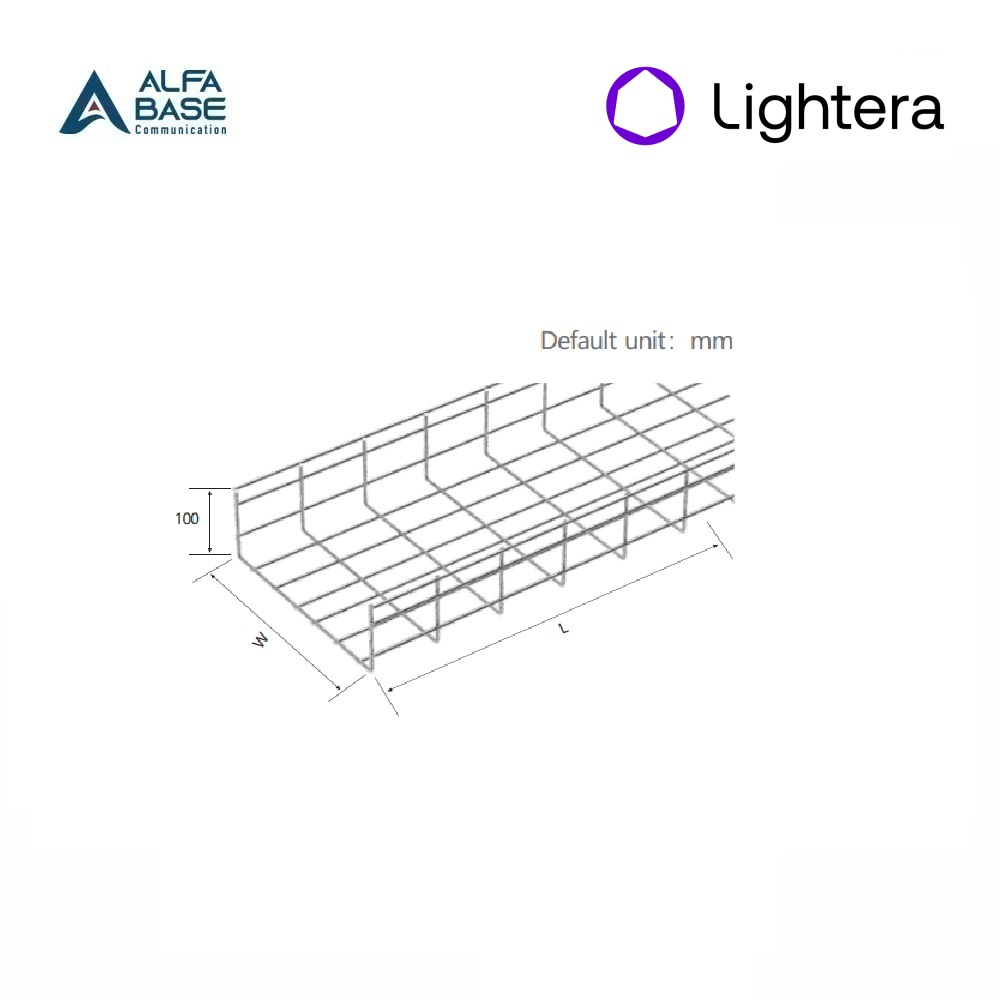

- e.g. CM100x100, CM means wire mesh cable tray
100×100 means HxW (inner size) - wire diameter range: 3.5mm-6.0mm (common diameter 5.0mm)
| Part Numbers | Height | Width | Length | Wire Diameter | Length | Weight |
|---|---|---|---|---|---|---|
| ALL CM100x100 | 100 | 100 | 3000 | 5.0 | 3m | 5.25kg |
| ALL CM100x150 | 100 | 150 | 3000 | 5.0 | 3m | 5.94kg |
| ALL CM100x200 | 100 | 200 | 3000 | 5.0 | 3m | 6.66kg |
| ALL CM100x300 | 100 | 300 | 3000 | 5.0 | 3m | 8.07kg |
| ALL CM100x400 | 100 | 400 | 3000 | 5.0 | 3m | 9.48kg |
| ALL CM100x450 | 100 | 450 | 3000 | 5.0 | 3m | 10.17kg |
| ALL CM100x500 | 100 | 500 | 3000 | 5.0 | 3m | 10.89kg |
| ALL CM100x600 | 100 | 600 | 3000 | 5.0 | 3m | 12.30kg |
