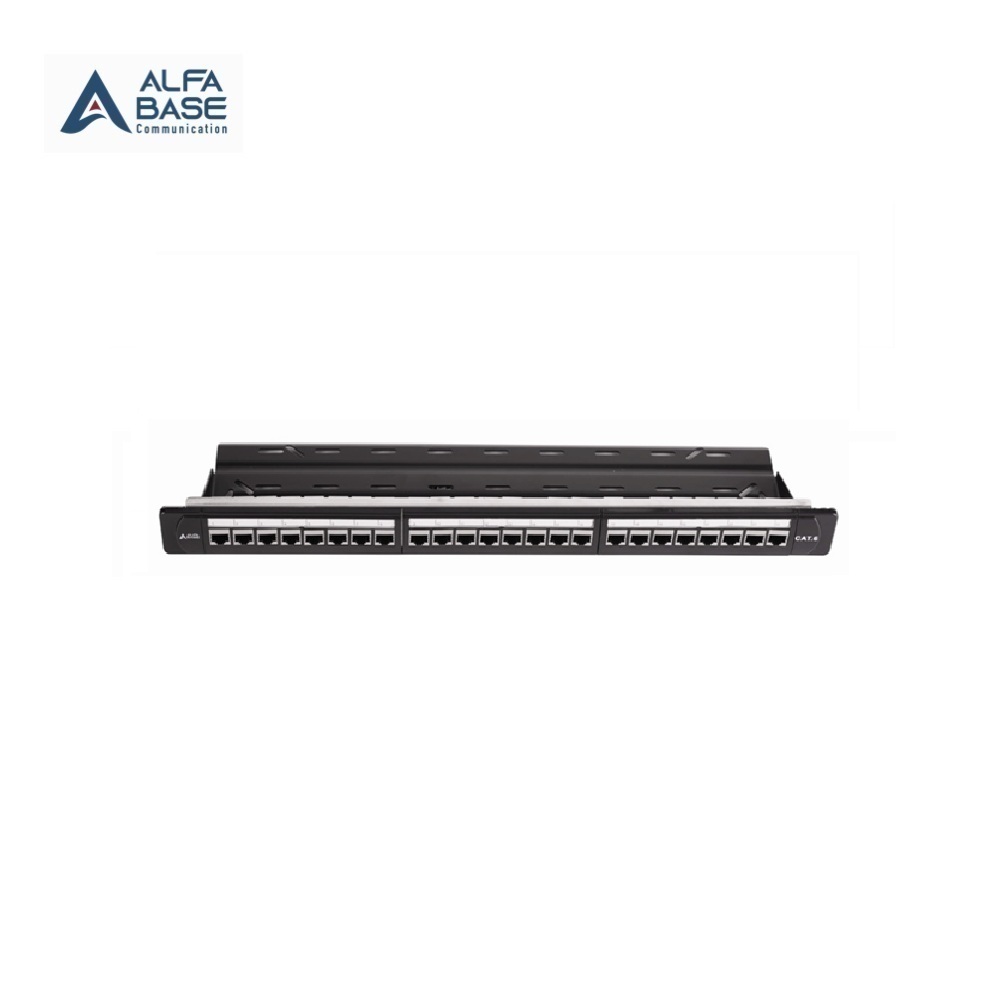

AL-4196S : Shield Unload Patch Panel 24 Port 1U W/Label, Back Bar Support

Applications :

  • 1000 Base-T (IEEE 802.3ab Gigabit Ethernet)
  • 100 Base-TX (IEEE 802.3u Fast Ethernet)
  • 10 Base-T (IEEE 802.3 Ethernet)
  • 52/155/622 Mbps and 1.2 Gbps ATM
  • 4/16 Mbps Token Ring
  • PoE (IEEE 802.3af, IEEE 802.3at)
  • TP-PMD, TPDDI, ISDN, VoIP
  • Baseband, Broadband
  • Analog & Digital Voice, Digital & Analog Video

Features :

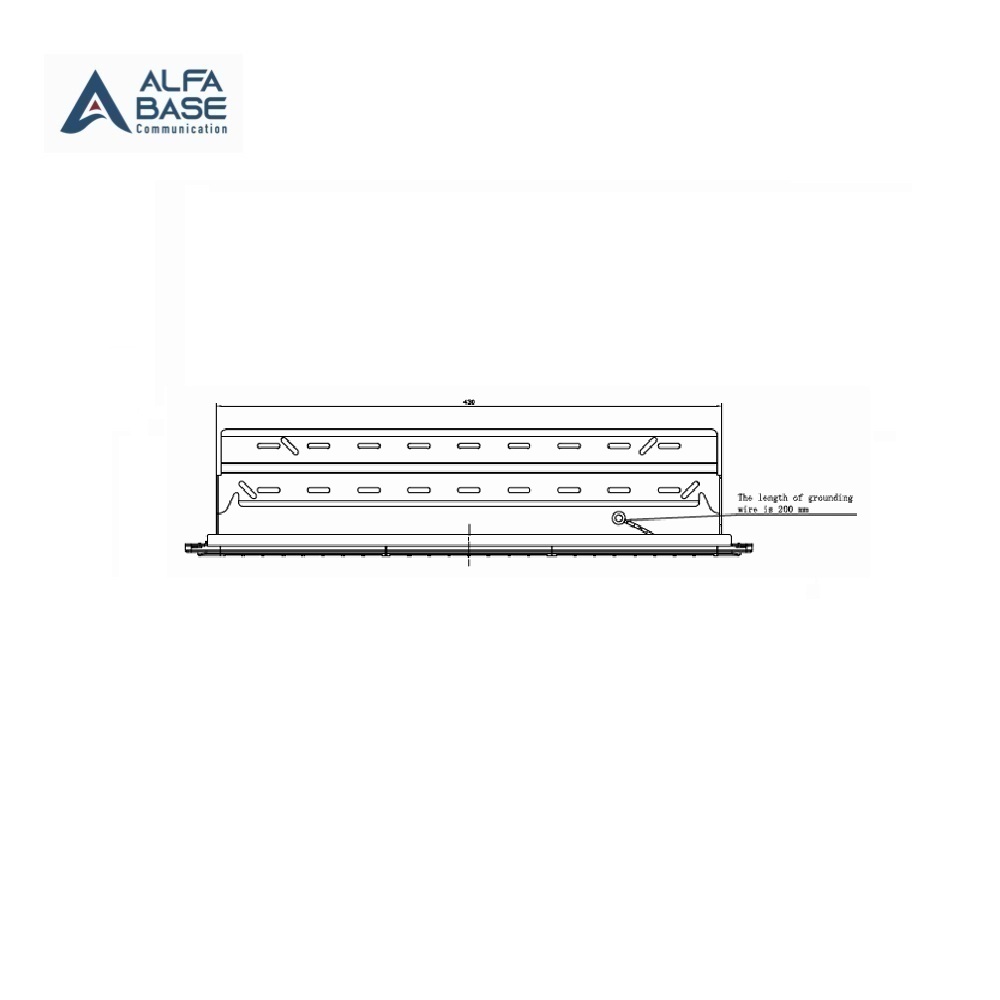

  • All-metal accessories, the bracket comes with grounding cable to maximize the grounding capacity which can effectively protect electromagnetic interference and radio frequency interference and provide excellent alien crosstalk suppression
  • Full working area with universal shielding module, easy disassembly, tool free termination
  • Support kinds of shielded and non-shielded modules free transfer
  • Full complete with CAT5E/CAT6 FTP RJ45 Female connector or In-Line coupler
  • Back bar management

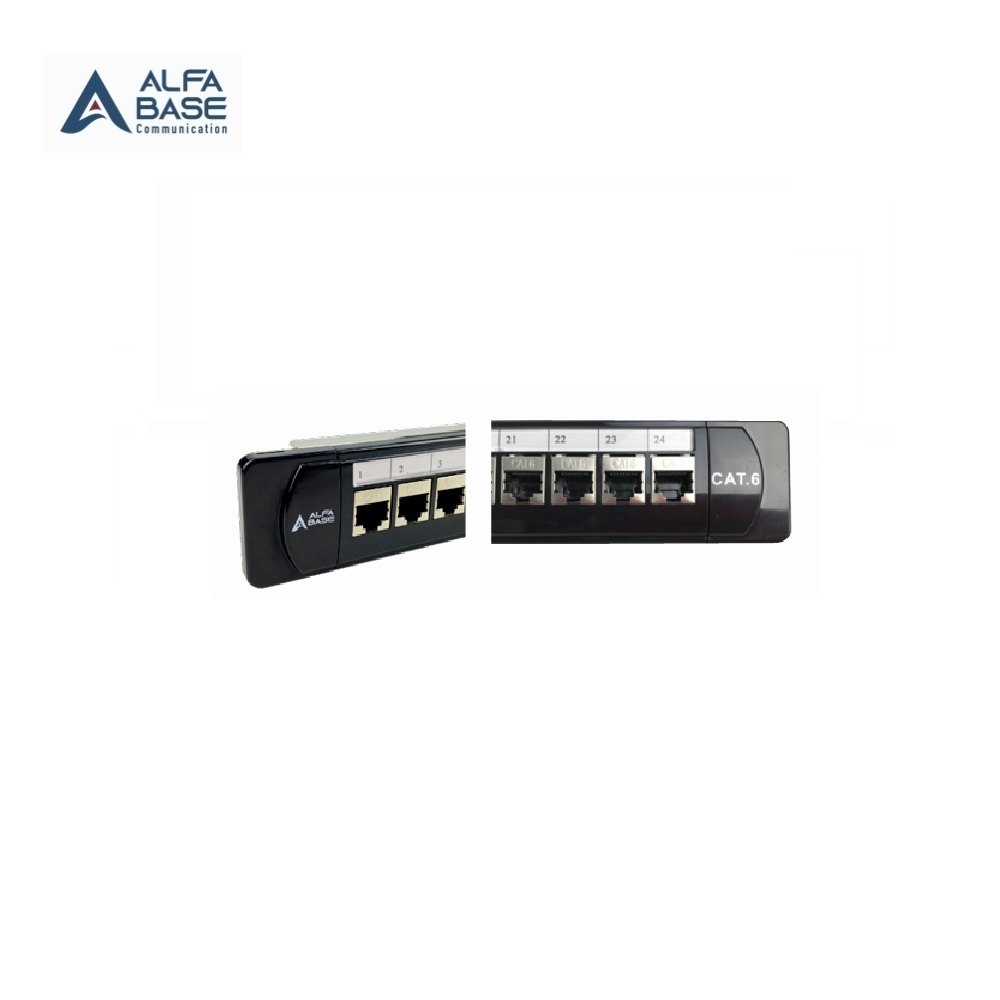

  • ID label
  • Insertion life : 1000 times
  • Humidity : 10% to 90% RH
  • Rated temperature : -20 ~ 70°C
  • Dimension : Height 1U 48.26 cm (W) x 8.89 cm (D)
P/NDescriptions
AL-4196SShield Unload Patch Panel 24 Port 1U W/Label, Back Bar Support "ALFA BASE"
AL-4196S-AL-3121SShield Patch Panel 24 Port 1U with Shield CAT6 In-Line Coupler "ALFA BASE"
