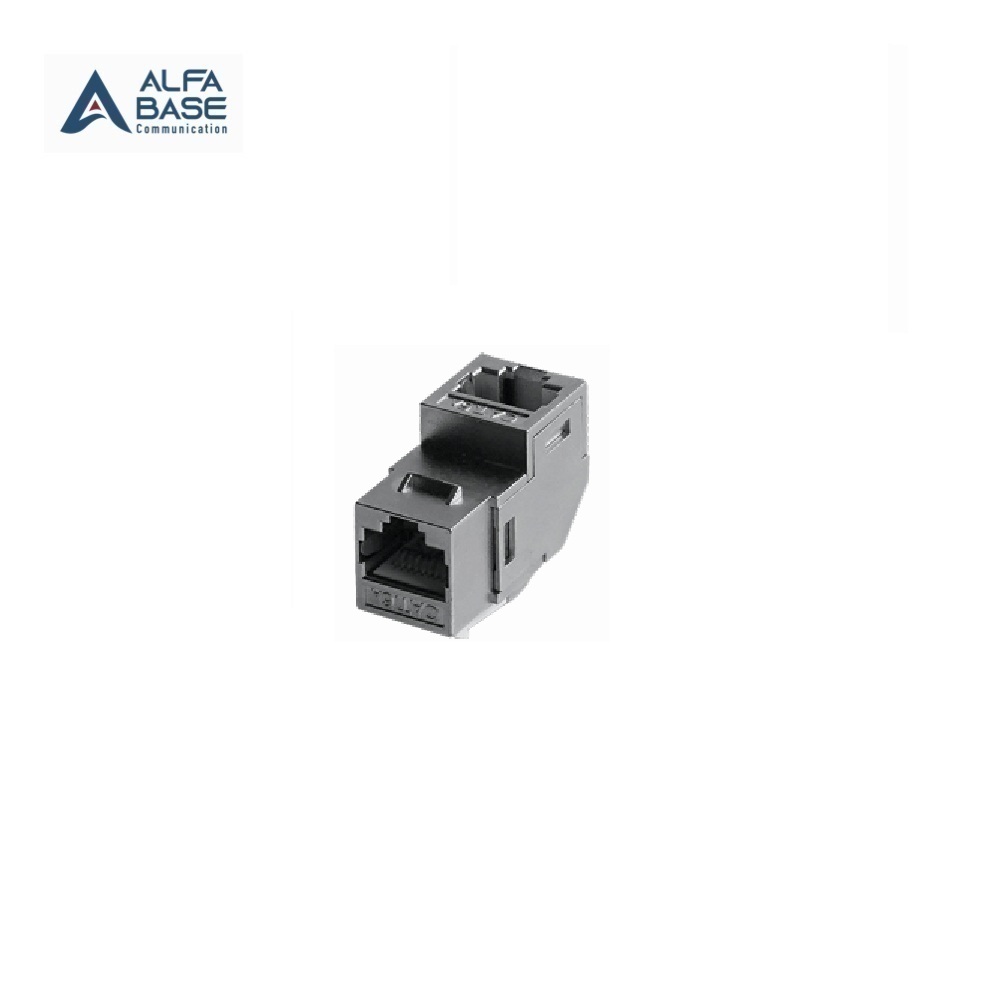

AL-3132S : Shielded CAT6A RJ45 In-Line Coupler Right Angle

Specifications :

  • Shielded type, 90 degree cable entry
  • Voltage rating : 125 VAC RMS
  • Current rating : 1.5A
  • Contact resistance : 100 mΩ (Min) @500 VDC
  • Dielectric Strength : 750 VAC RMS 60 Hz, 1Min
  • Terminating : 22 – 26 AWG wiring cable

Material :

  • Housing : Zinc diecast nickel plated
  • RJ45 contact : Phosphor bronze
P/NDescriptions
AL-3132SShielded CAT6A RJ45 In-Line Coupler Right Angle "ALFA BASE"
Description

Description

Applications :

  • 10 Base-T (IEEE 802.3)
  • 100 Base-TX (IEEE 802.3u)
  • 1000Base-T (IEEE 802.3ab)
  • Data center, VoIP, ISDN, PoE, CCTV and others

Standards :

  • ANSI/TIA-568-C.2 Category 6
  • ISO/IEC 11801:2017 Class EA
  • EN55032:2015
  • EN55024:2010+A1:2015
  • IEEE 802.3an (10G Base T)
  • EMC compliant
  • RoHS compliant

Environment

  • Operation Temperature : 0 – 70°C
