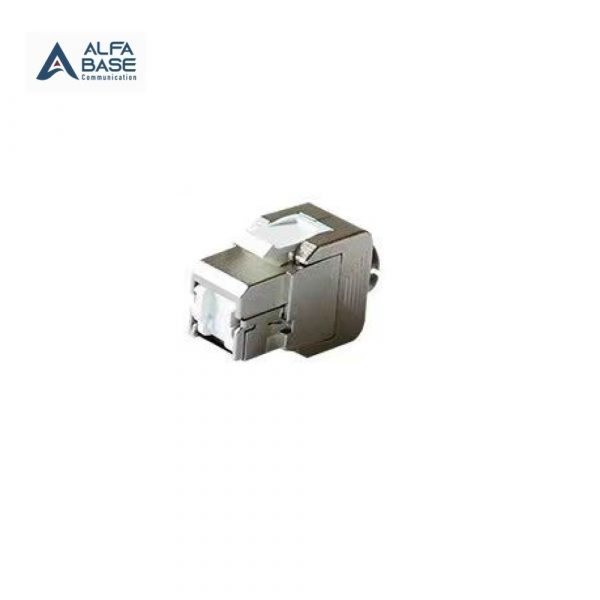

AL-2122S : Shielded CAT6 RJ45 Modular Jack Slim, Tool Free

Specifications :

  • Voltage rating : 125 VAC RMS
  • Current rating : 1.5 A
  • Contact resistance : 100 mΩ (Max)
  • Insulation resistance : 500 MΩ (Min) @500 VDC
  • Dielectric strength : 750 VAC RMS 60 Hz, 1 min
  • Termination resistance : 35 milli ohms max
  • Insertion force : 20N max (IEC 60603-7-4)
  • Retention strength : 7.7kg between jack and plug
  • Operating temperature : -10°C to 60°C
  • Life mating cycles RJ45 contact : 750 cycles min (ISO/IEC 11801, IEC 60603-7-4)
  • IDC terminal : Suitable for 22 – 26 AWG stranded and solid wire, compatible with both 110 & krone punch down tools

Materials :

  • RJ45 jack :
    • Housing : Zinc alloy
  • RJ45 jack contact :
    • Material : Phosphor bronze nickel plated
    • Finish :  50 micro-inch gold plated on plug contact area
  • IDC
    • Housing : PC with termination wire guide
    • Terminal : Phosphor bronze nickel plated
    • CAP : PC
    • PCB : FR-4, UL
P/NDescriptions
AL-2122SShielded CAT6 RJ45 Modular Jack Slim, Tool Free "ALFA BASE"
Price Request
Compare
Category:
Description

Description

Applications :

  • 10 Base-T (IEEE 802.3)
  • 100 Base-TX (IEEE 802.3u)
  • 1000 Base-T (IEEE 802.3ab)
  • Data Center, VoIP, ISDN, PoE, CCTV and others
  • To mounting on patch panel or face plate

Standards :

  • ANSI/TIA-568-C.2 Category 6
  • ISO IEC-11801
  • IEEE 802.3ab
  • EMC compliant
  • IEC 60603-7-4
