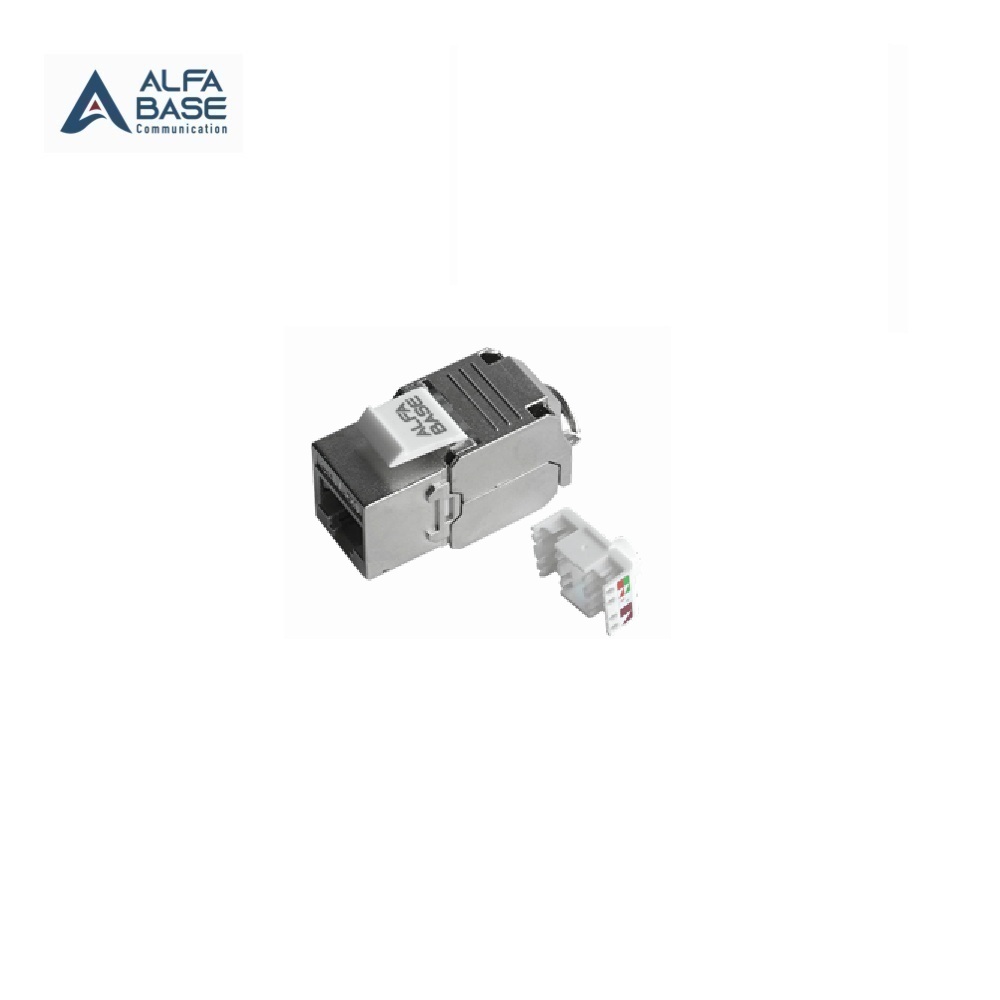

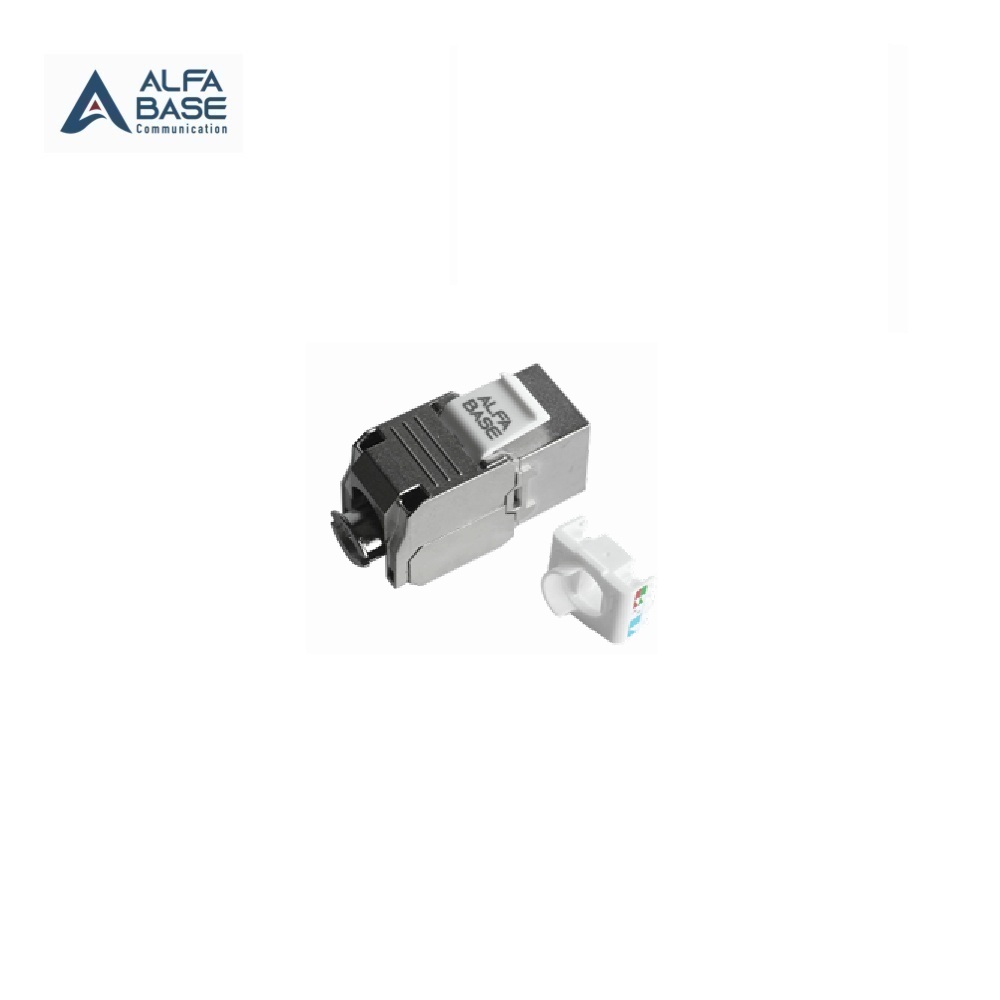

AL-2134S : Shielded CAT6A RJ45 Modular Jack Slim Tool Free Auto Shuttle

Specifications :

  • Voltage rating : 125 VAC RMS
  • Current rating : 1.5 A
  • Contact resistance : 100 mΩ (Max)
  • Insulation resistance : 500 MΩ (Min) @500 VDC
  • Dielectric strength : 750 VAC RMS 60 Hz, 1 min
  • Wire contact compatibility : Accommodates AWG 22-26

Materials :

  • Housing : Zinc diecast nickel plated
  • Insert : PC
  • PCB : FR-4
  • RJ45 contact : Phosphor bronze with gold plated 50U
  • IDC terminal : Phosphor bronze nickel plated
P/NDescriptions
AL-2134SShielded CAT6A RJ45 Modular Jack Slim, Tool Free Auto Shuttle "ALFA BASE"
Description

Description

Applications :

  • 10 Base-T (IEEE 802.3)
  • 100 Base-TX (IEEE 802.3u)
  • 1000 Base-T (IEEE 802.3ab)
  • 10G (XG)
  • Data Center, VoIP, ISDN, PoE, CCTV and others
  • To mounting on patch panel or face plate

Standards :

  • ANSI/TIA-568-C.2 Category 6A
  • ISO IEC-11801:2017 Class EA
  • IEEE 802.3an (10G Base T)
  • EMC compliant
  • IEC 60603-7-4
