Description
Applications :
- 10G (XG)
- IEEE 802.3
- 10G Base-T
- 1000Base-T
Standards :
- ANSI/TIA-568-C.2 Category 6A
- ISO/IEC 11801:2017 Class EA
- EN55032:2015
- EN55024:2010+A1:2015
- IEEE 802.3an (10G Base T)
- EMC compliant
- RoHS compliant

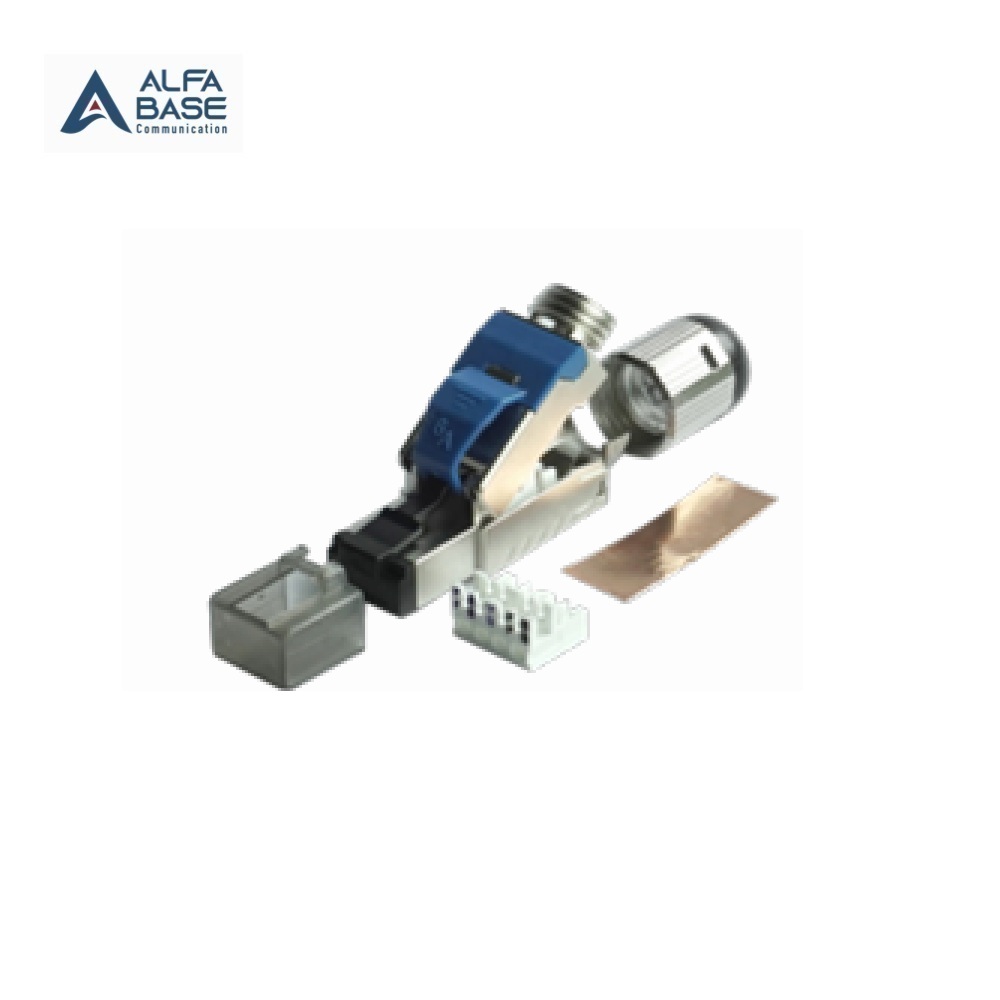

AL-1145S : Shield CAT6A RJ45 Modular Plug Field Terminated Tool Free Straight Direction
Specification :
- Voltage rating : 125 VAC RMS
- Current rating : 1.5A
- Contact resistance : 100mΩ (Max)
- Insulation resistance : 500 MΩ (Min) @500 VDC
- Dielectric strength : 500 VAC RMS 60Hz, 1 min
- Termination resistance : 35 milli ohms max
- Wire termination size : 22-26 AWG
Material :
- Housing : Zinc diecast nickel plated
- Shielded : Zinc alloy
- RJ45 contact : Phosphor bronze with gold plated 50U
- IDC terminal : Phosphor bronze nickel plated
| P/N | Descriptions |
|---|---|
| AL-1145S | Shield CAT6A RJ45 Modular Plug Field Terminated Tool Free Straight Direction "ALFA BASE" |
