Description
Applications
– Indoor application
– Interface optical communication system
– Telecommunication networks, data communication networks and FTTx
Features :
– Steel cabinet wall mount for indoor application
– Cabinet made from electro galvanize steel 0.9 mm thickness
– Combine splicing function, storing of fiber optical cable, pigtail and patch cord
– Store and protect excess optical cable and patch cord
– Splicing and distribution 12 fibers per tray or 24 fibers per tray

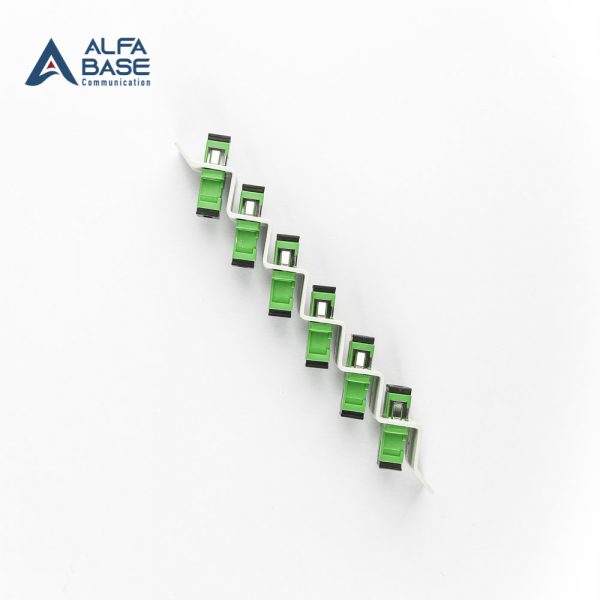

• SC type support 48 fibers or LC (SCF) type support 96 fibers based on snap plate 48F

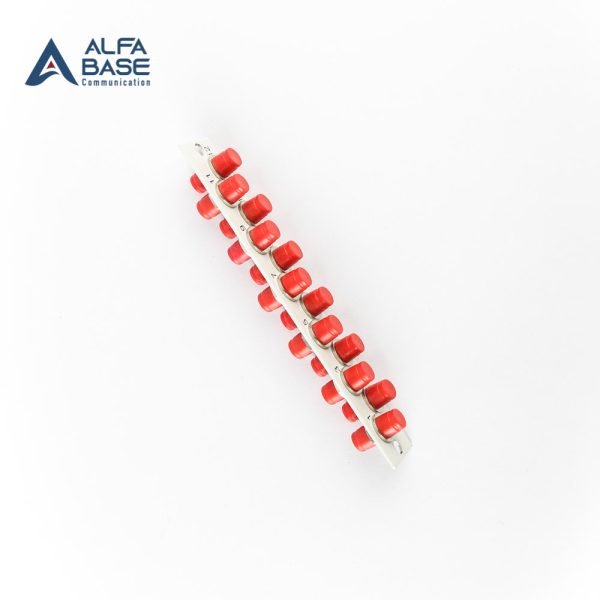

• FC type or ST type support 24 fibers based on snap plate 24F
– Support fiber bending radius 30 mm
– Nice shape, easy installation and maintenance
– Easily fixed by screw, convenient for operation and inspection
– Provide strength member holder to fix the main fiber cable
– Light gray cabinet
Accessories :
– Cable tie, water proof connector and swell bolt
– Splice tray, fusion sleeve, pigtail and adapter as optional
Dimensions :
– 400W x 81D x 380H mm.
