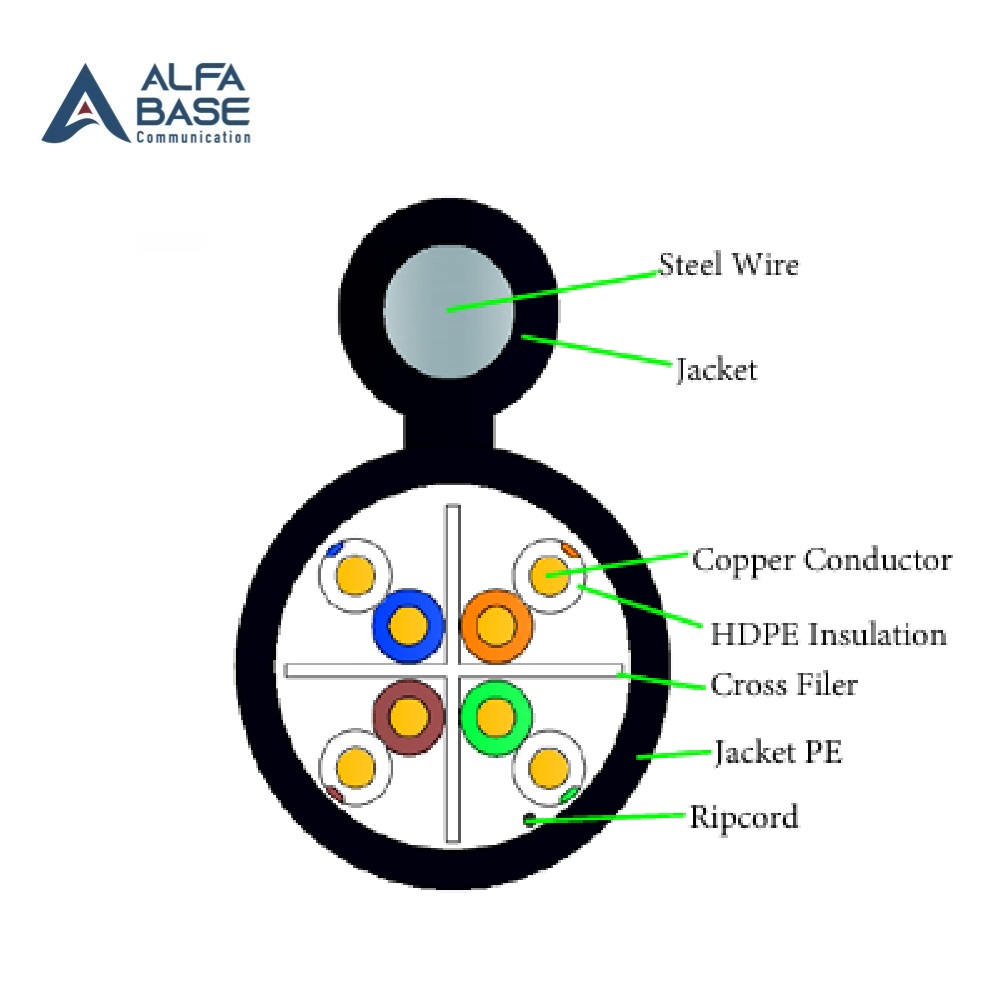

Description
Applications :
- 100Base-TX
- 100Base-T
- 100VG-AnyLAN
- 1000Base-T(Gigabit Ethernet)
- 1000Base-TX
- 155Mbps ATM
- 622Mbps ATM
Standards :
- ANSI/TIA 568.2-D Catagory6
- ISO/IEC 11801
Operating temperature : -40°C ~ 75°C
Electrical Characteristics :
- 1 – 250 MHz impedance 100±15Ω
- Max. delay skew ≤ 45/100 m
- Max. conductor resistance 93.8 Ω/km (@20 °C)
- Max. conductor resistance unbalance 5% (@20 °C)
- Min. insulation resistance 5000 MΩ/Km
- Nominal mutual capacitance ≤ 56 nF/Km
- Nominal velocity of propagation 69%
Mechanical Characteristics
- Outer jacket tensile strength ≥ 9.7 Mpa
- Outer jacket elongation ≥ 350%
- Max. recommended rolling tension 110N
- Outer jacket aging condition 100 °C x 168 hrs.
- After aging, tensile strength ≥ 75% of unaging
- After aging, elongation ≥ 50% of unaging
- Cold bend no crack (@-20 °C x 4 hrs.)
- Hot impact no crack (@150 °C x 4 hrs.)
| Performance Characteristic : | ||||||
|---|---|---|---|---|---|---|
| Frequency (MHz) | IL (dB/100m) | Next (dB) | PS Next (dB) | ACR-F (dB) | PS ACR-F (dB) | RL (dB) |
| 1 | 3.0 | 65.0 | 62.0 | 64.2 | 61.2 | 19.1 |
| 4 | 3.5 | 64.1 | 61.8 | 52.1 | 49.1 | 21.0 |
| 8 | 5.0 | 59.4 | 57.0 | 46.1 | 43.1 | 21.0 |
| 10 | 5.5 | 57.8 | 55.5 | 44.2 | 41.2 | 21.0 |
| 16 | 7.0 | 54.6 | 52.2 | 40.1 | 37.1 | 20.0 |
| 20 | 7.9 | 53.1 | 50.7 | 38.2 | 35.2 | 19.5 |
| 25 | 8.9 | 51.5 | 49.1 | 36.2 | 33.2 | 19.0 |
| 31.25 | 10.0 | 50.0 | 47.5 | 34.3 | 31.3 | 18.5 |
| 62.5 | 14.4 | 45.1 | 42.7 | 28.3 | 25.3 | 16.0 |
| 100 | 18.6 | 41.8 | 39.3 | 24.2 | 21.2 | 14.0 |
| 155 | 23.7 | 38.7 | 36.2 | 20.4 | 17.4 | 12.1 |
| 200 | 27.4 | 36.9 | 34.3 | 18.2 | 15.2 | 11.0 |
| 250 | 31.1 | 35.3 | 32.7 | 16.2 | 13.2 | 10.0 |
