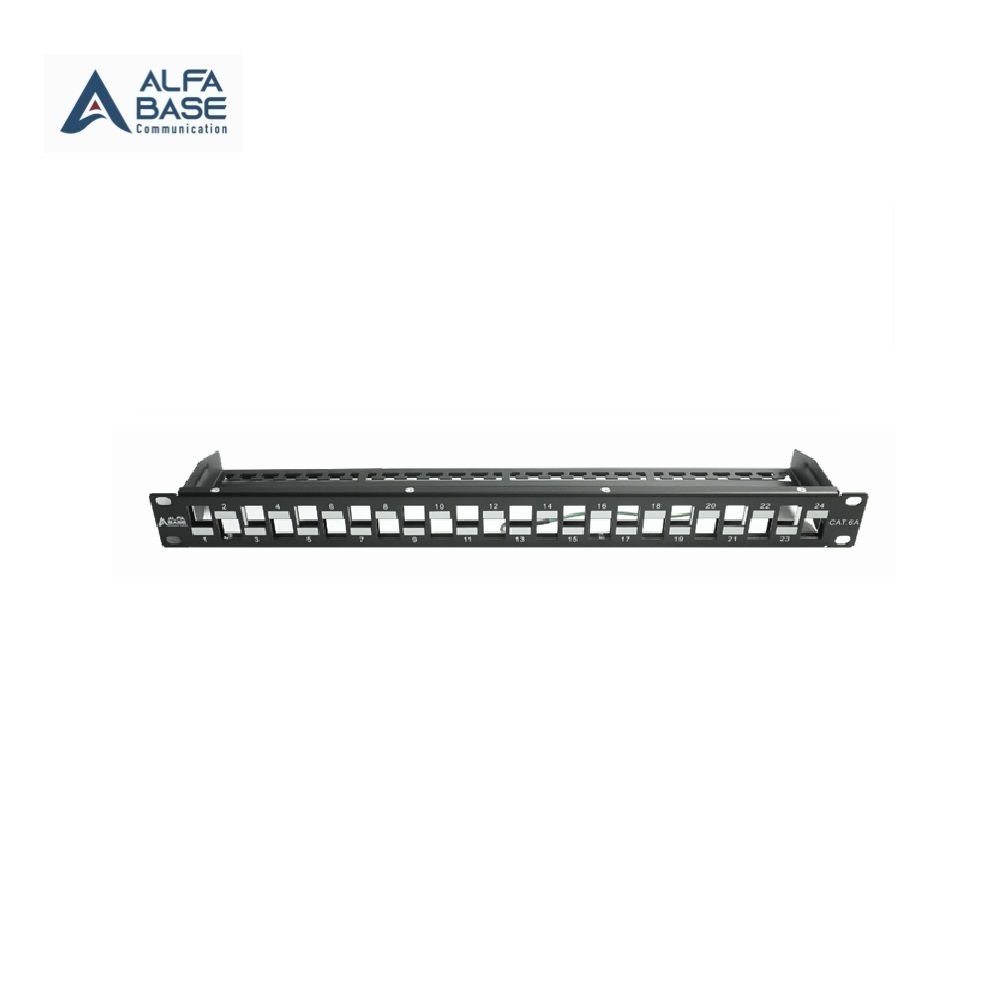

AL-4172S : Shielded Unload Patch Panel 19″ 1U 24 Port

Specifications :

  • All-metal accessories, the bracket comes with grounding cable to maximize the grounding capacity which can effectively protect electromagnetic interference and radio frequency interference and provide excellent alien crosstalk suppression
  • Full working area with universal shielding module, easy disassembly and tool free termination
  • Support shielded and unshielded modules free transfer
  • Support CAT5E/CAT6/CAT6A RJ45 female connector or In-Line coupler
  • Back bar management
  • ID label
  • Insertion life : 1000 times
  • Compliant with ANSI/TIA-568-C.2 channel specification
  • Humidity : 10% to 90% RH
  • Rated temperature : -20 ~ 70°C

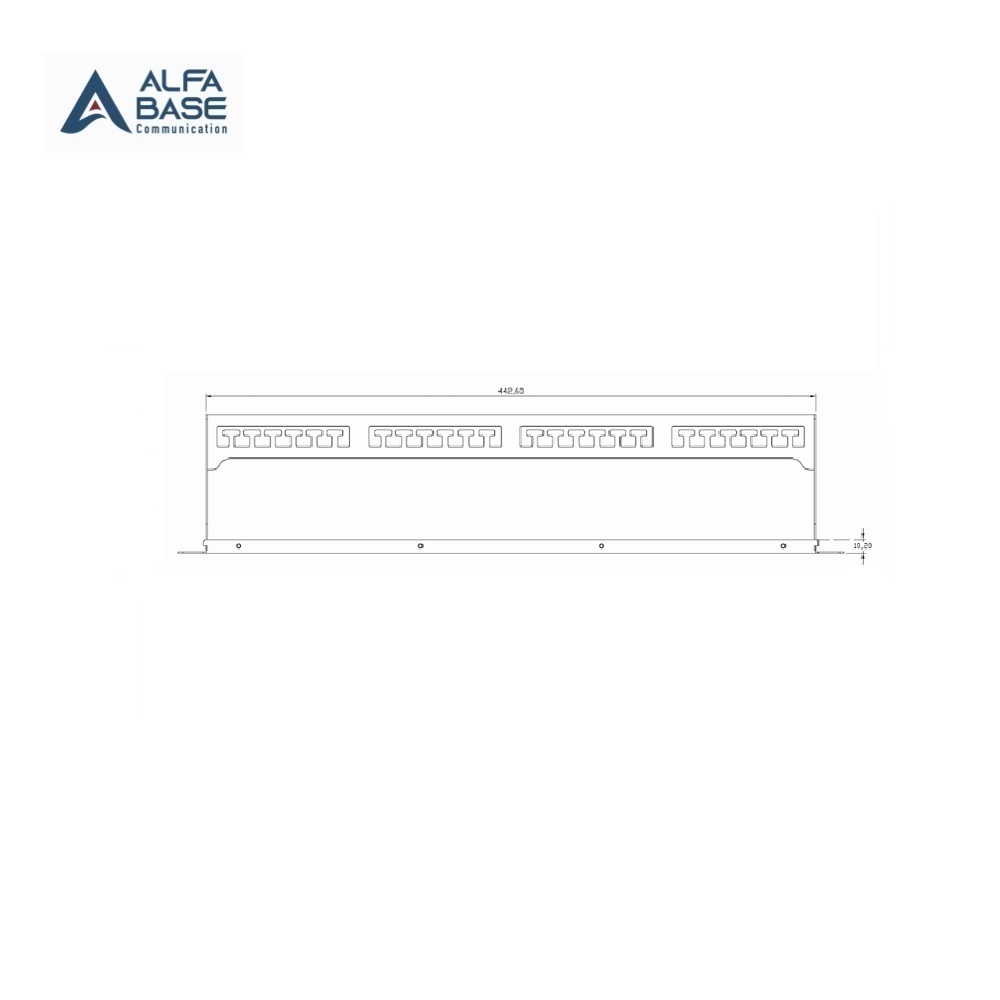

  • Dimension : Height 1U 48.26 cm (W) x 10.1 cm (D)
  • Material is SPCC 1.2 mm, black color
P/NDescriptions
AL-4172SUnload Patch Panel 19" 1U 24 Port w/ Label, Back Bar Support "ALFA BASE"
Price Request
Compare
Categories: , , ,
Description

Description

Applications :

  • 1000 Base-T (IEEE 802.3ab Gigabit Ethernet)
  • 100 Base-TX (IEEE 802.3u Fast Ethernet)
  • 10 Base-T (IEEE 802.3 Ethernet)
  • 52/155/622 Mbps and 1.2 Gbps ATM
  • 4/16 Mbps Token Ring
  • PoE (IEEE 802.3af, IEEE 802.3at)
  • TP-PMD, TPDDI, ISDN, VoIP
  • Baseband, Broadband
  • Analog & Digital Voice, Digital & Analog Video
