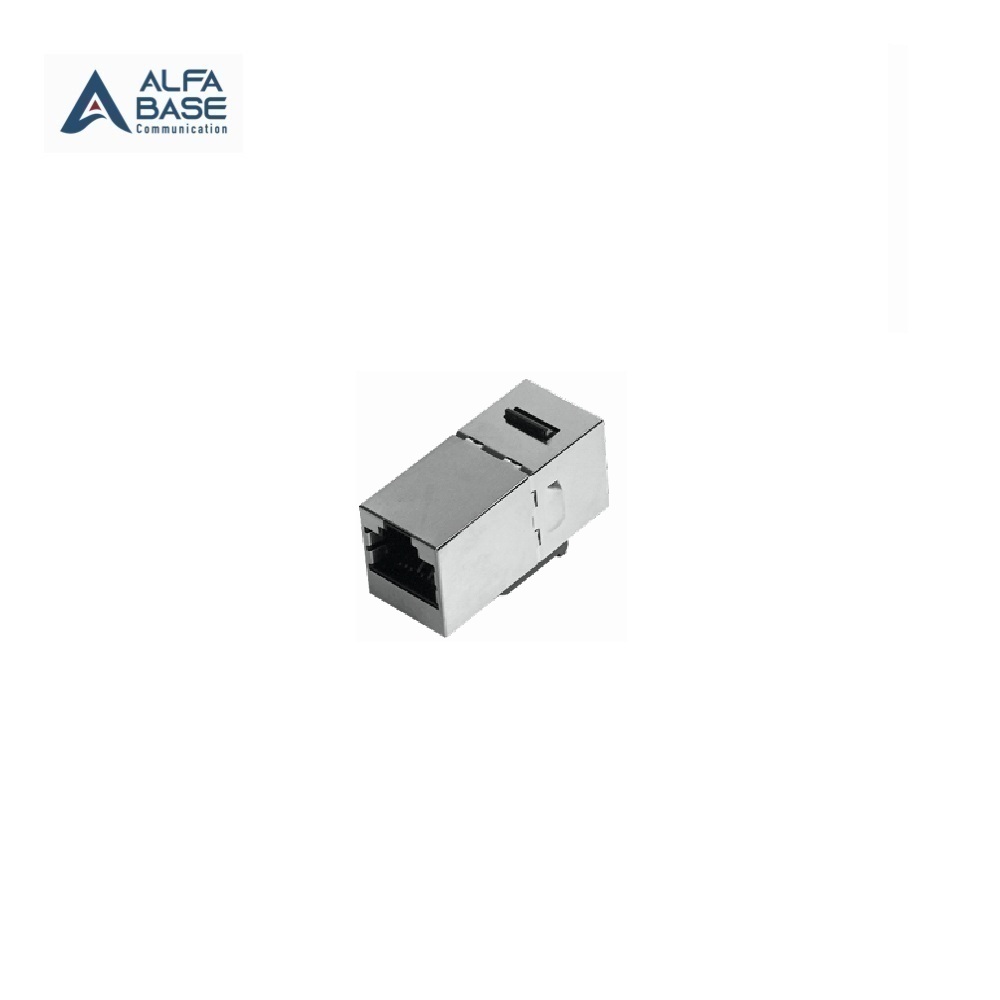

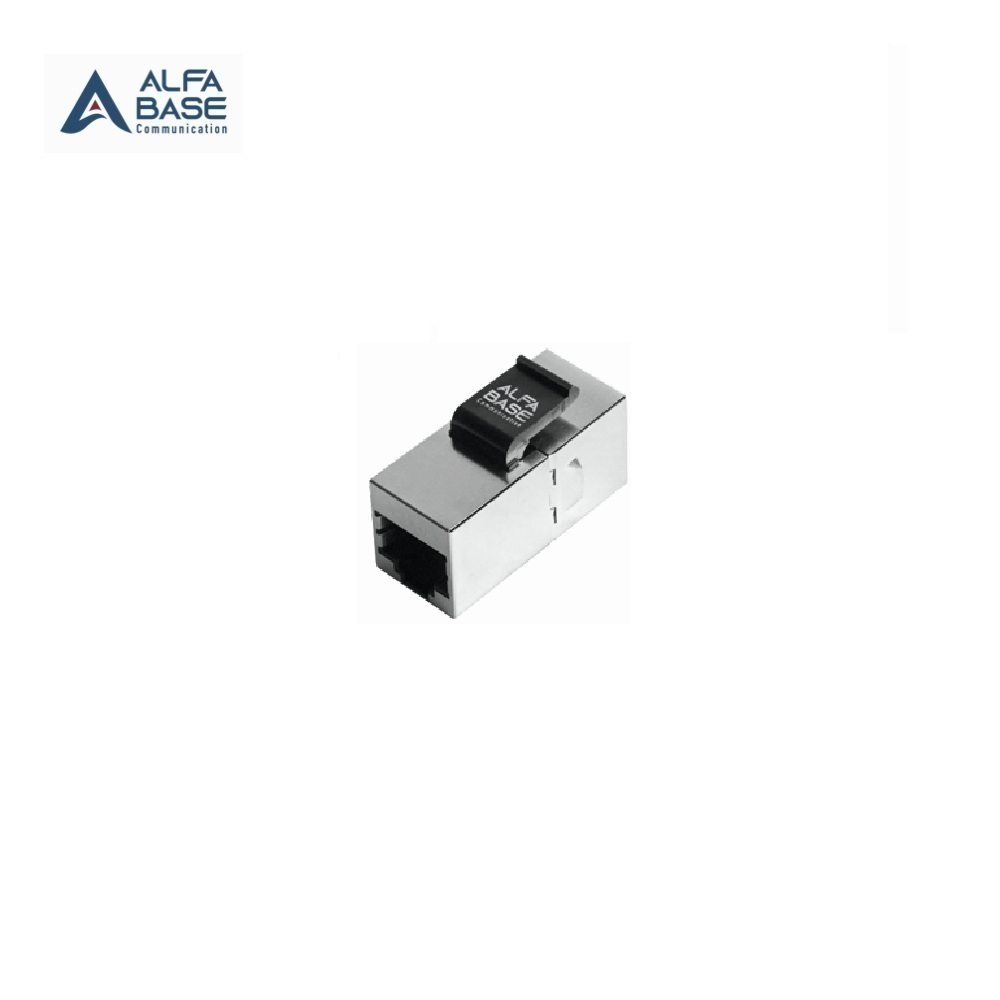

AL-3133S : Shielded CAT6A RJ45 In-Line Coupler Slim

Specifications :

• Voltage rating : 140 VDC
• Current rating : 2 A (Max)
• Contact resistance : 200 mΩ (Max)
•  Insulation resistance : 500 MΩ (Min)
• Operation temperature : 20 to 80 °C
• Durability : Jack 750 mating cycles (Min), IDC contact 300 stripper cycles (Min)

Material :

• Housing : PC, Copper
• RJ45 contact : Phosphor bronze with gold plated 50U
  Notes : UL94V-0 Compliant
